The A2502 (5264) Internal Connecting Cable is made of environmentally friendly materials that comply with ROHS and UL standards. It supports the customization of wire types within the range of 22-30AWG and has passed strict electrical standard tests. The plastic housing can be replaced, and technical support is provided. The minimum order quantity is negotiable. It is suitable for robotic vacuum cleaners and a variety of household appliances such as refrigerators, washing machines, and microwaves. It can stably transmit current and signals, ensuring smooth operation and reliable performance of the equipment.
Item No :

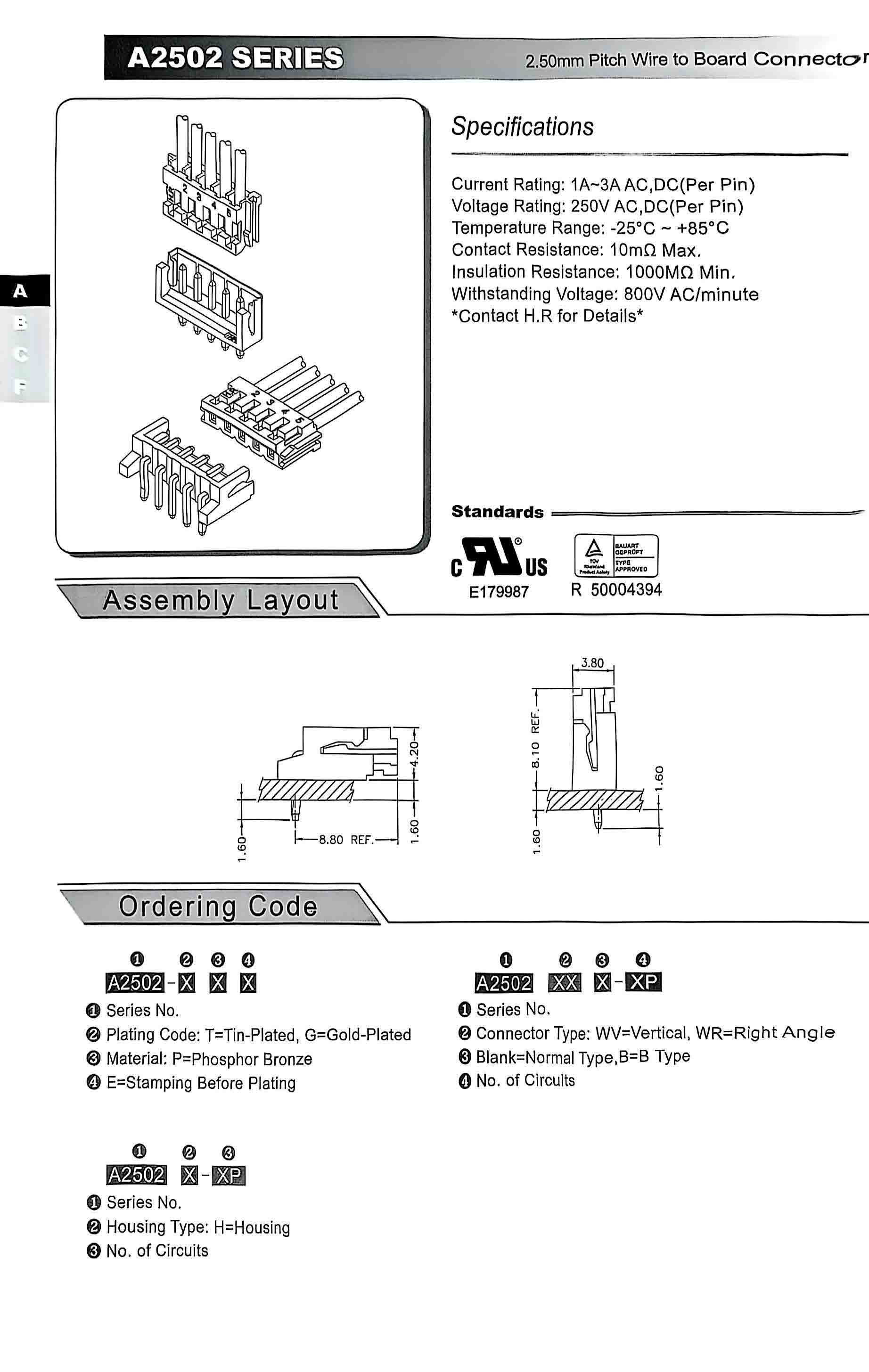

A2502 (5264)Current Rating :
1A~3A AC,DC(Per Pin)Voltage Rating :
250V AC,DC(Per Pin)Temperature Range :
-25°C~+85°CContact Resistance :
≤0.02Ω, 10mΩ Max.Insulation Resistance :
≥000MΩ Min.Poles :
2~15(20)Applicable wire :
AWG28#~22#Withstand voltage :
800V AC/minute, 1000V.AC/1minApplicable PC Board Thickness :
1.6mmWire Gauge :

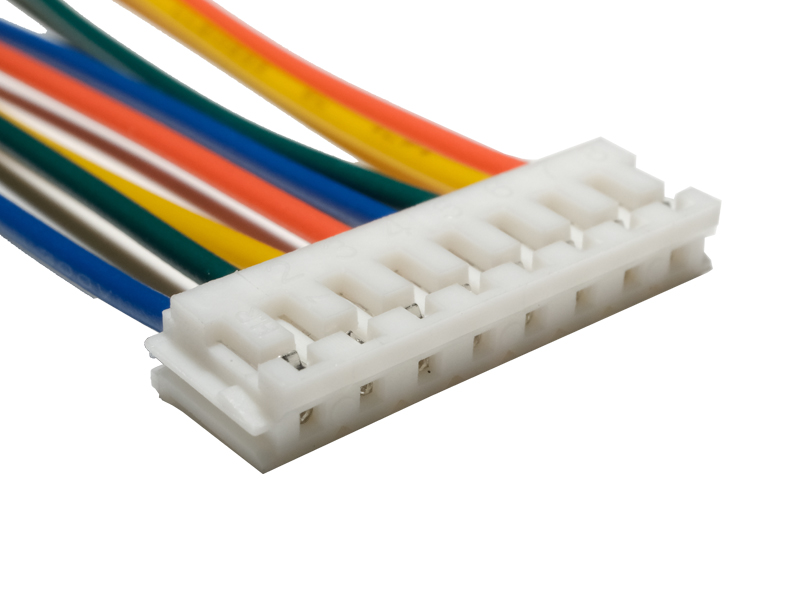

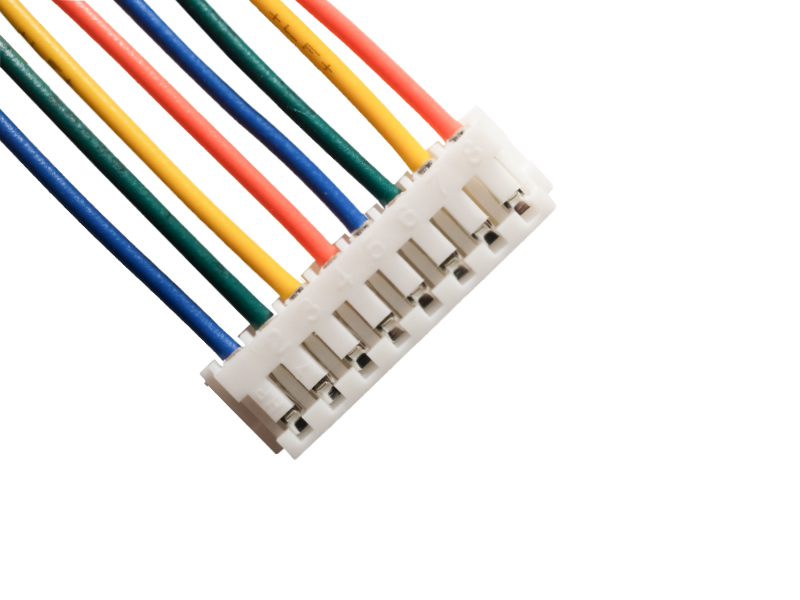

22-30AWG standardA2502 (5264) 2.5mm Pitch 2~20 Pin Wire to Board Connector with Cable
These internal power extension cable utilize eco-compliant materials meeting ROHS and UL safety standards. Custom specifications are available to fulfill your application needs.
Product Overview
Our connectors are designed to handle a wide wire gauge range of 22–30 AWG, making them versatile for different power and signal needs. If your project requires non-standard sizes, we can also adjust the dimensions to match your exact specifications.
The default connector model is A2502H, a reliable industry-proven option. However, we understand that every design is unique, so we’re happy to provide alternative models based on your schematics or project requirements.
Cable length isn’t just a number—it directly affects performance and installation. That’s why each assembly is precision-engineered to fit seamlessly into your equipment layout, ensuring neat routing and consistent signal quality.
Standard black or white isn’t always enough. We offer a wide choice of wire colors so you can simplify wiring identification or match your brand’s color scheme. Custom color coding not only looks professional but also makes maintenance easier.
Materials & Quality
Certifications: All raw materials comply with ROHS and UL safety/environmental standards

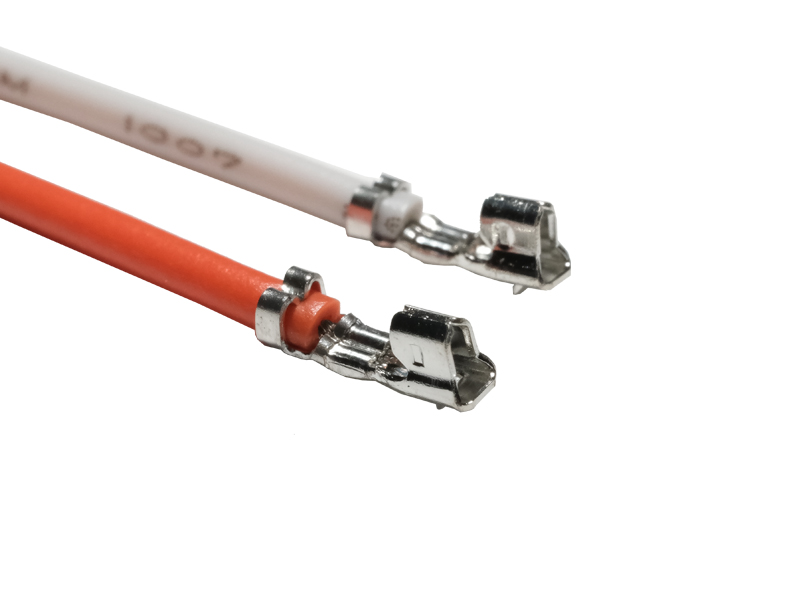

Production Process:Machine-automated stripping and crimping, with manual housing assembly ensuring EMI-resistant connections.
Performance: Maintains stable conductivity in high-interference environments.
Packaging & Delivery
Standard Packaging: Bundled with nylon ties and anti-static bubble wrap
Custom Packaging: Available with barcode labels, desiccant bags, and ESD-safe cartons
Shipping Methods: Air freight, ocean freight, or international courier
Lead Time: Synchronized with project timelines------delivery schedule must be confirmed in advance. (Actual delivery period applies)
Typical Applications
Engineered for industrial-grade internal connections, essential for:
Industrial Control Systems
- CNC machine control cabinet wiring
- Automated production line mainboard links
- Industrial robot control box integration
Energy Infrastructure
- Solar inverter internal power distribution
- Wind converter control module interfaces
- Energy storage BMS unit connections
Telecom Equipment
- 5G base station RF unit interconnects
- Data center server backplane cabling
- Network switch module bridging
Critical Medical Systems
- CT scanner gantry internal wiring
- Blood analyzer circuit connections
- Ventilator mainboard signal transmission
Specifications

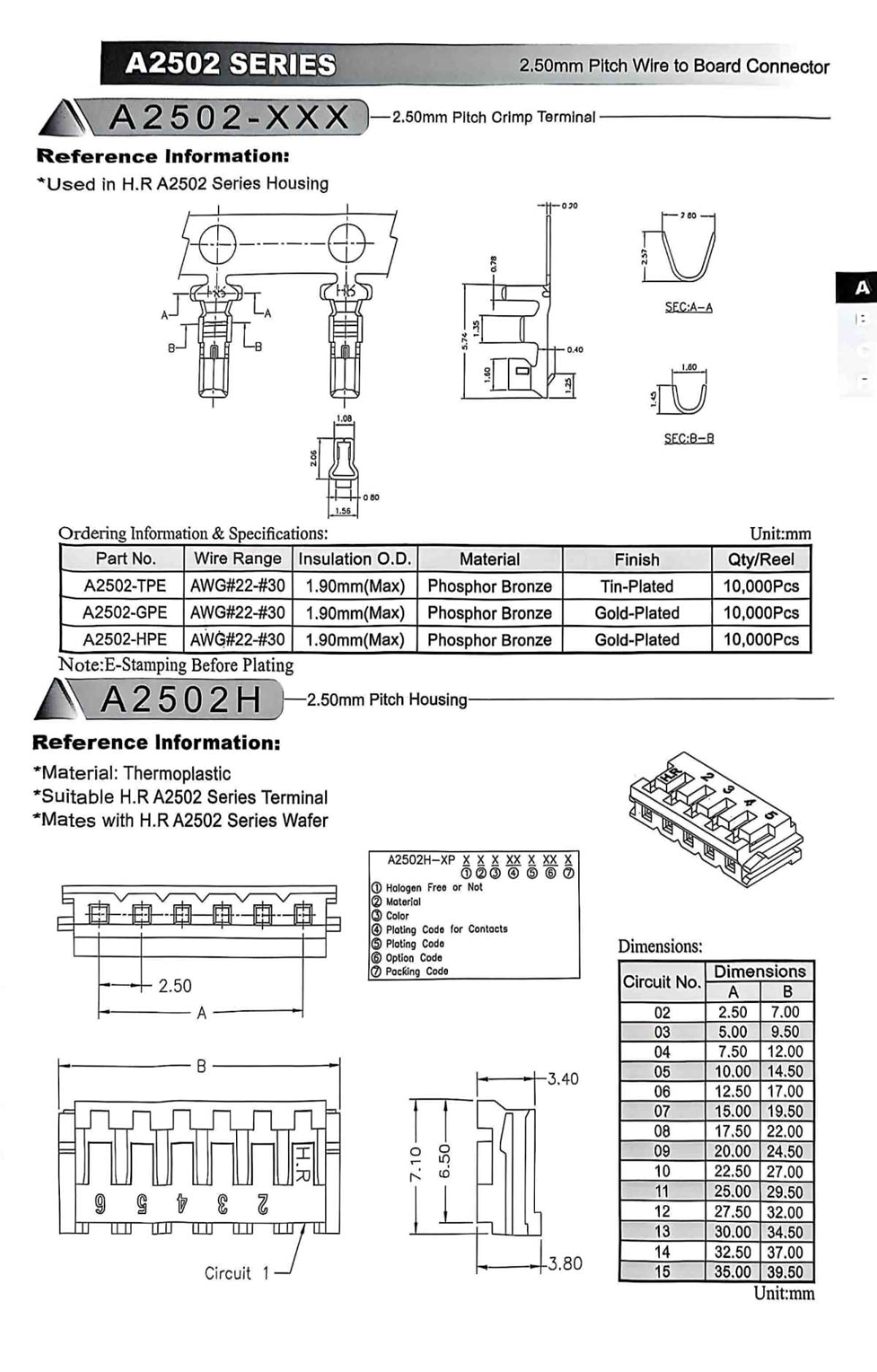

| Ordering Information & Specifcations: | |||||
| Part No. | Wire Range | Insulation O.D. | Materlal | Finish | Qty/Reel |
| A2502-TPE | AWG#22-#30 | 1.90mm(Max) | Phosphor Bronze | Tin-Plated | 10,000Pcs |
| A2502-GPE | AWG#22-#30 | 1.90mm(Max) | Phosphor Bronze | Gold-Plated | 10,000Pcs |
| A2502-HPE | AWG#22-#30 | 1.90mm(Max) | Phosphor Bronze | Gold-Plated | 10,000Pcs |

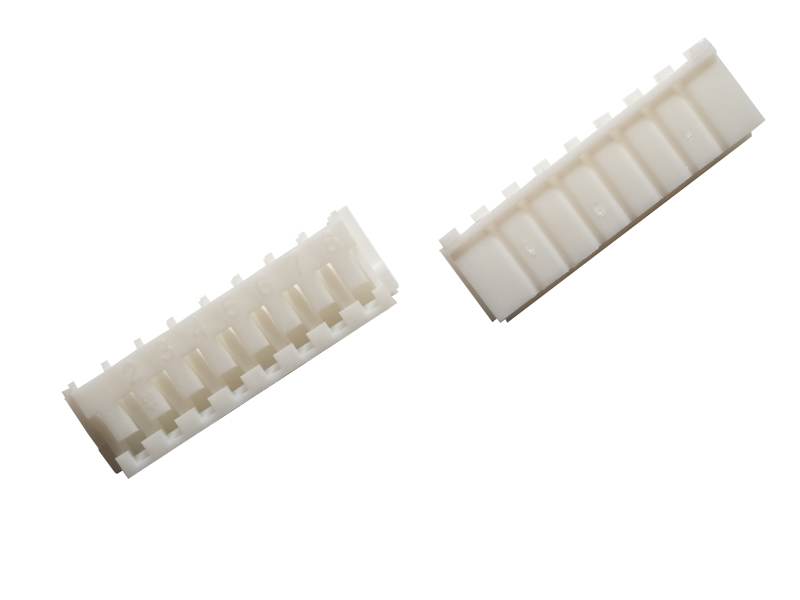

A2502(5264) 2.5mm Pitch Housing
Reference Information:
*Material: Thermoplastic
*Suitable H.R A2502 Series Terminal
*Mates with H.R A2502 Series Wafer
| Dimensions: | ||
| Circuit No. | Dimensions | |
| A | B | |
| 02 | 2.50 | 7.00 |
| 03 | 5.00 | 9.50 |
| 04 | 7.50 | 12.00 |
| 05 | 10.00 | 14.50 |
| 06 | 12.50 | 17.00 |
| 07 | 15.00 | 19.50 |
| 08 | 17.50 | 22.00 |
| 09 | 20.00 | 24.50 |
| 10 | 22.50 | 27.00 |
| 11 | 25.00 | 29.50 |
| 12 | 27.50 | 32.00 |
| 13 | 30.00 | 34.50 |
| 14 | 32.50 | 37.00 |
| 15 | 35.00 | 39.50 |
