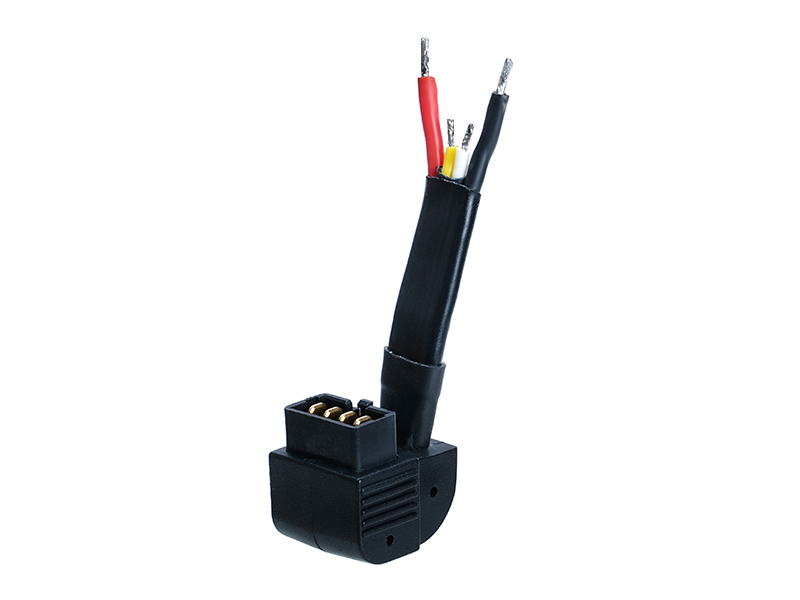

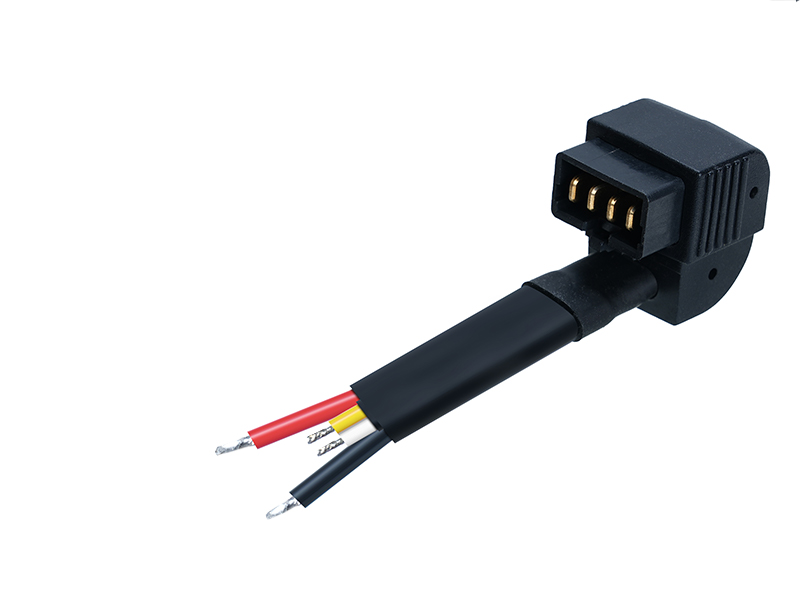

UL Certified Eco Drone Battery Blade Connector

Highlights of  Drone Battery Blade Connector:

Environmental protection: Using environmentally friendly materials certified by ROHS and UL to ensure the safety, reliability and environmental performance of the product.

Wide adaptability: Supporting UL2468 26/28AWG wire type (other specifications can be customized) and 2.50mm pitch battery connector (other types can be customized), and the size can be adjusted according to customer needs.

Good high temperature resistance: Working normally in a wide temperature range of -40℃ to +105℃, which is very suitable for high-load application scenarios such as drone batteries

Basic Specifications

• Wire Type: Standard UL2468 26/28AWG, customizable for special specifications

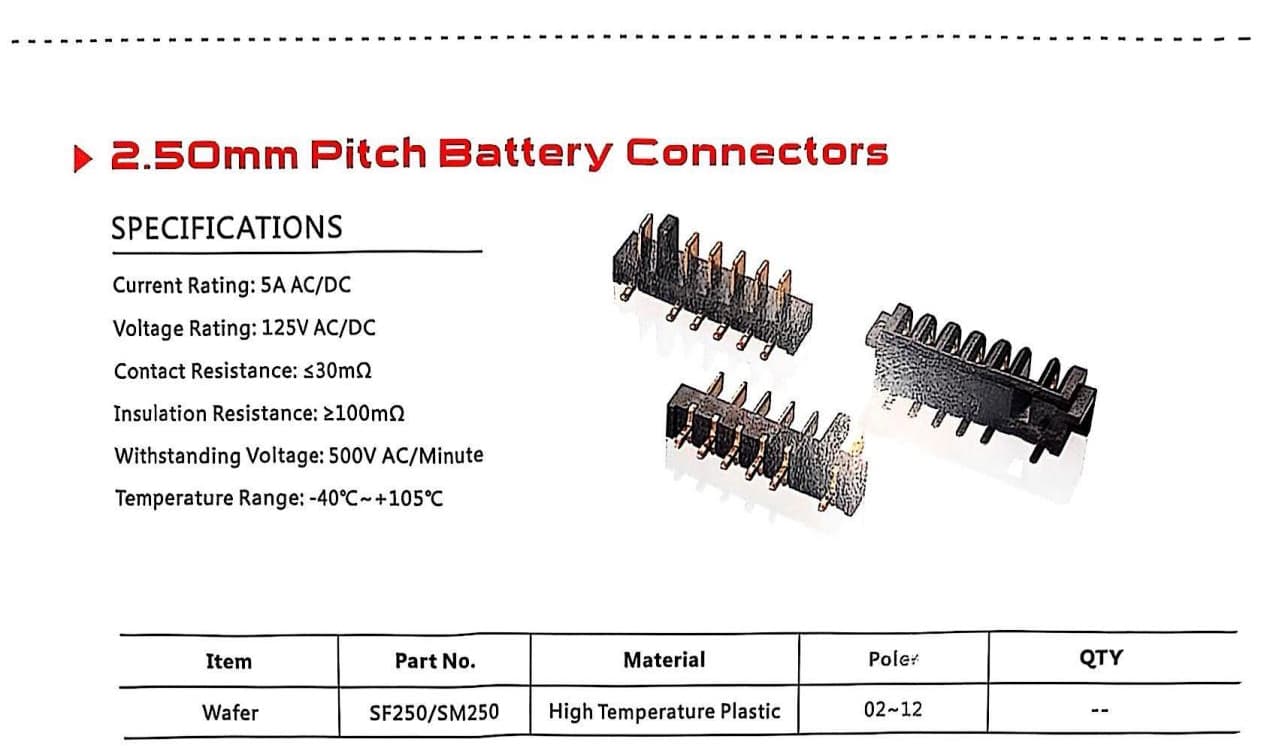

• Connector: 2.50mm pitch battery connector (standard), customizable for other types
• Dimensions: Precision - produced according to customer requirements
• Applications: UAV batteries, laptop battery power systems

Material

• Housing: Made of high temperature resistant plastic that meets UL94V-0 flame retardant standard
• Contact: Made of phosphor bronze tin-plated material, the conductivity is increased by 30%

Technology

• Automatic crimping process is used to control the contact resistance to ≤30mΩ
• Using ultrasonic welding technology to ensure the firmness of the connection

Service Guarantee:

Delivery Time: The specific time needs to be negotiated according to the complexity of customization.

Packaging:

Standard packaging: Anti-static bags, pearl cotton and cartons are used for packaging.

Customized packaging: Packaging with anti-fall and anti-vibration functions can be provided.

Transportation method:

International express services are available, such as DHL, UPS, FEDEX, etc

Sea or air transportation is also available, and door-to-door service is available.

Minimum order quantity: negotiable, and small batch trial production is also supported.

Application Scenarios:

Drone & UAV Systems:

Ideal for connecting power battery packs in drones, ensuring stable and high-efficiency energy transmission.

Consumer Electronics

Compatible with laptop battery power supply systems, providing a reliable and eco-friendly connection solution.

Industrial & High-Reliability Equipment

Used as a critical connection component in industrial power supply systems that demand durability and safety.

New Energy & Automotive

Suitable for Battery Management Systems (BMS) in electric vehicles (EVs) and other new energy applications.
