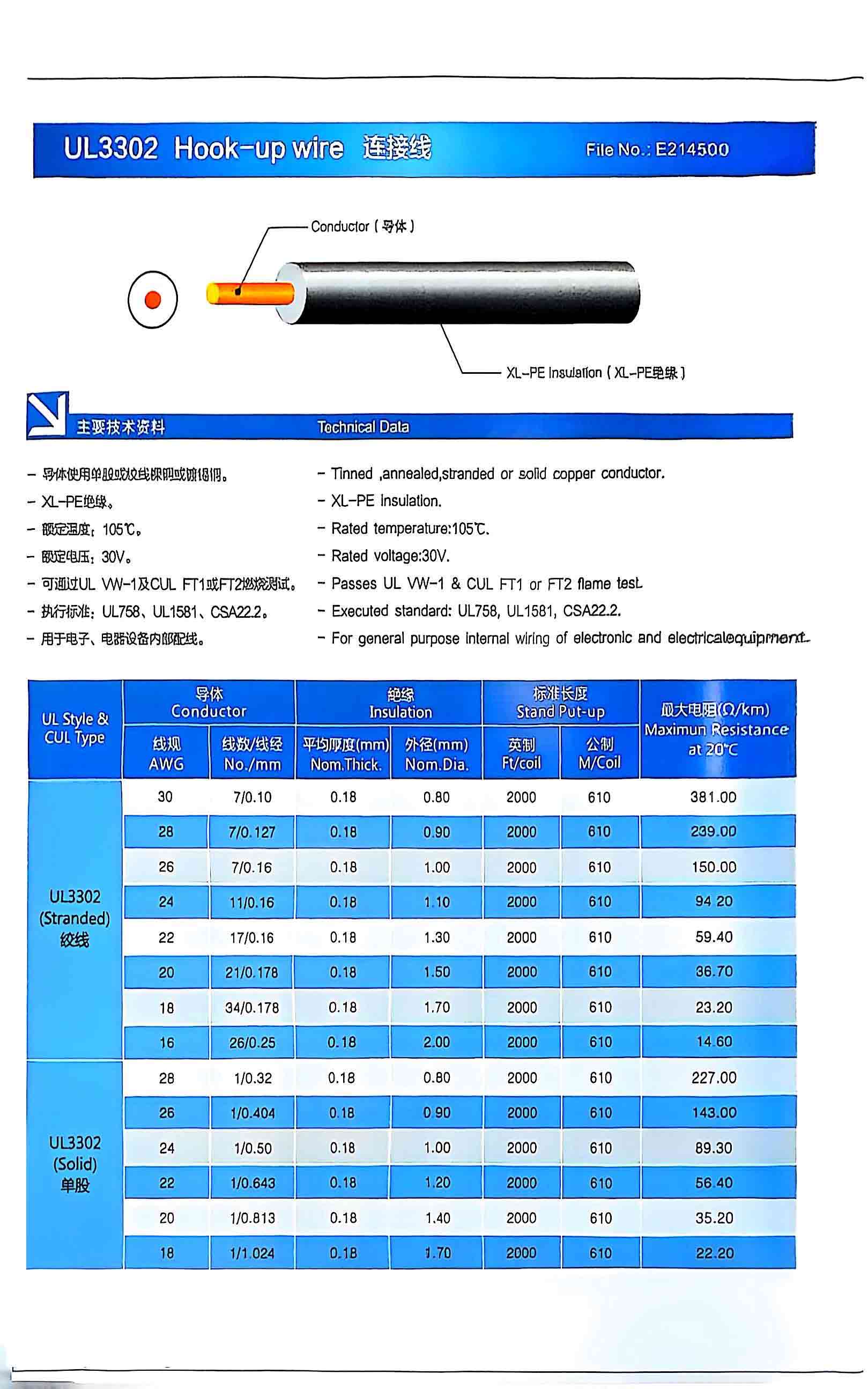

UL1571,3302 and Other Series of Electronic Lines

Technical Data:

-Tinned, annealed, standed or solid copper conductor.

-XL-PE Insulation.

-Rated temperature: 105℃

-Rated voltage: 30V.

-Passes UL V-1 & CUL FT1 or FT2 flame test

-Executed standard: UL758, UL1581, CSA22.2

-For general purpose internal wiring of electronic and electrical equipment

Inquiry Now

Product categories

New products

Product Details

UL1571,3302 and other series of electronic lines

Product Details

Manufactured by an OEM/ODM - capable factory, colors and designs can be customized.

1.Basic Product Specifications

Wire Type: Standard series wires available, with custom non - standard options.
Dimensions: Custom - made as per customer requirements.

2.Materials and Process

Materials: Meet ROHS and UL standards.
Process: Offers additional processing services.

3.Product Performance

Stable signal and current transmission, reducing interference and loss.

4. Applications

Used across multiple device types and industries.

5.Service Guarantee

Negotiated delivery date.
Standard or custom packaging.
Multiple shipping options.
Negotiable minimum order quantity.

Partial UL-certified harnesses available. Contact us for other needs.
UL1007	UL1015	UL1617	UL1061＆1571	UL1569	UL1095	UL1533	UL1185	UL2547
UL2854	UL2851	UL2468	UL2651	UL20080	UL1914	UL3266	UL3167	UL3173
UL3182	UL3194	UL3199	UL3265	UL3271	UL3288	UL3289	UL3290	UL3295

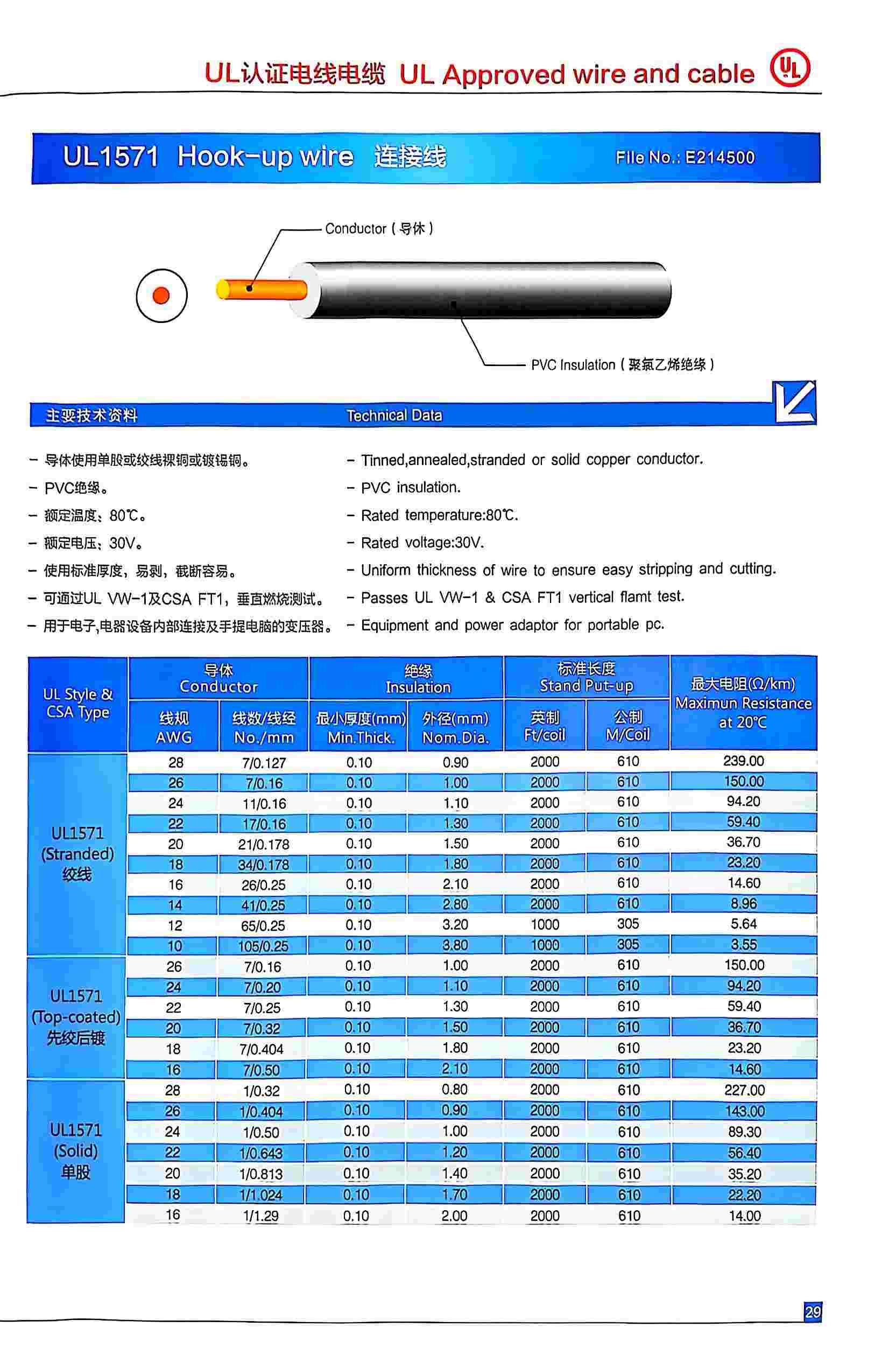

UL1571 Wire Specification Table
UL Style & CSA Type	AWG	No./mm	Min. Thick (mm)	Nom. Dia (mm)	Ft/coil	M/coil	Max Resistance at 20℃
UL1571 (Stranded)	28	7/0.127	0.1	0.9	2000	610	239
	26	7/0.16	0.1	1	2000	610	150
	24	11/0.16	0.1	1.1	2000	610	94.2
	22	17/0.16	0.1	1.3	2000	610	59.4
	20	21/0.178	0.1	1.5	2000	610	36.7
	18	34/0.178	0.1	1.8	2000	610	23.2
	16	26/0.25	0.1	2.1	2000	610	14.6
	14	41/0.25	0.1	2.8	2000	610	8.96
	12	65/0.25	0.1	3.2	1000	305	5.64
	10	105/0.25	0.1	3.8	1000	305	3.55
UL1571 (Top-coated)	26	7/0.16	0.1	1	2000	610	150
	24	7/0.20	0.1	1.1	2000	610	94.2
	22	7/0.25	0.1	1.3	2000	610	59.4
	20	7/0.32	0.1	1.5	2000	610	36.7
	18	7/0.404	0.1	1.8	2000	610	23.2
	16	7/0.50	0.1	2.1	2000	610	14.6
UL1571 (Solid)	28	1/0.32	0.1	0.8	2000	610	227
	26	1/0.404	0.1	0.9	2000	610	143
	24	1/0.50	0.1	1	2000	610	89.3
	22	1/0.643	0.1	1.2	2000	610	56.4
	20	1/0.813	0.1	1.4	2000	610	35.2
	18	1/1.024	0.1	1.7	2000	610	22.2
	16	1/1.29	0.1	2	2000	610	14

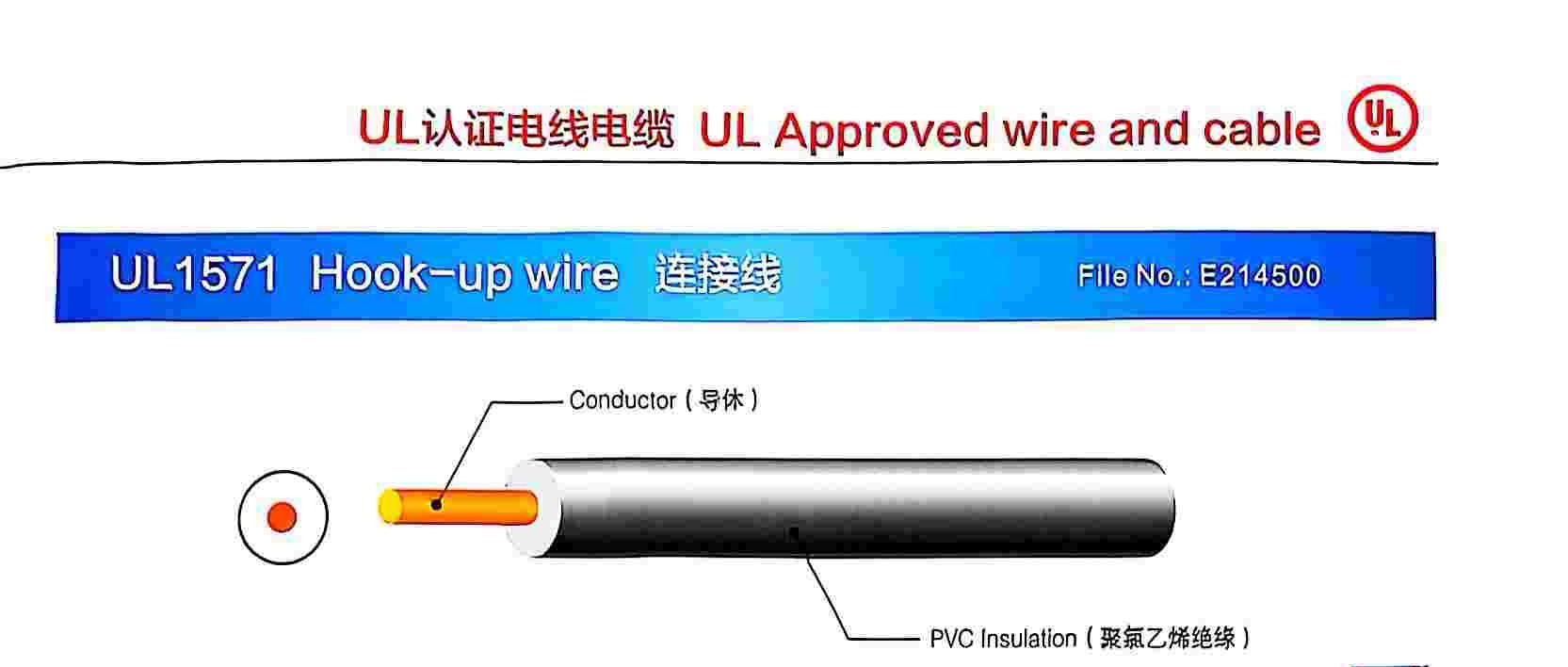

UL1571 Hook-up wire
