In custom wire harness projects, the most frequent client question is:"What wire size should I choose?"

This "size" refers to AWG (American Wire Gauge) — a standardized system reflecting conductor diameter, which directly determines a wire’s current-carrying capacity, safety margin, and thermal performance.

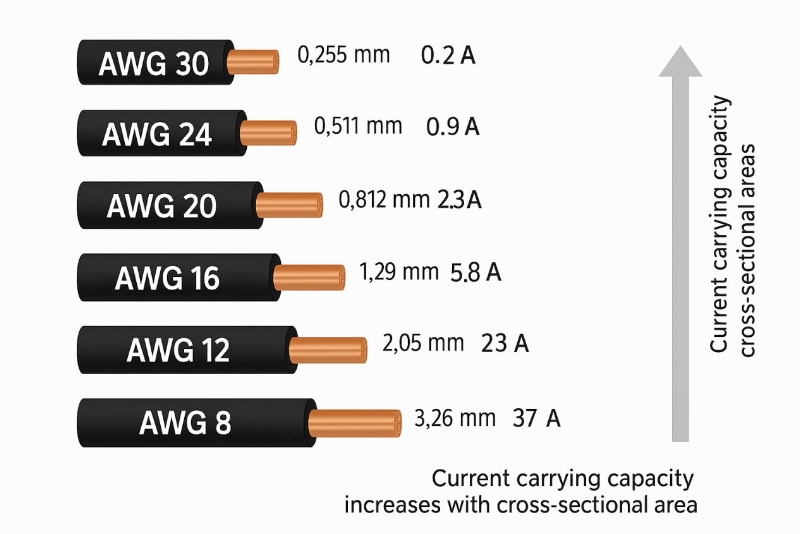

1. Basic Relationship Between AWG and Conductor Size
Lower AWG numbers indicate thicker wires with higher current capacity. Examples:

AWG 28 ≈ 0.08 mm² — Ideal for low-current signal lines

AWG 20 ≈ 0.52 mm² — Suitable for mid-range power

AWG 14 ≈ 2.07 mm² — For high-power systems

2.Current Carrying Capacity Reference (PVC Single Core)

AWG

Size Conductor Diam. (mm)

Max Current (A)

Typical Applications

30

0.254

0.228

Signal, LED circuits

26

0.405

0.577

Sensor wires

24

0.511

0.921

USB/Data cables

20

0.812

2.335

Power lines, automotive

16

1.291

5.885

Motors, control cabinets



Critical Notes:

Actual current capacity varies significantly with cable length, ambient temperature, insulation material, bundle density, and installation method.

Tabulated values are conservative estimates. Always verify with IEC/UL standards or manufacturer datasheets for specific applications.



3. How to Choose the Right AWG for Your Application?

Long-distance runs: Require thicker conductors to minimize voltage drop.

High-temp/dense layouts: Demand additional safety margins.

Consumer electronics: Typically use AWG 28–24.

Industrial/vehicle systems: Prefer AWG 20–16.



4. Services from Shenzhen Era WingShing Electronics Co., Ltd.

We deliver custom wire harnesses from AWG 30 to AWG 16 with multiple insulation options:

PVC | Silicone | PE | TPU

UL-certified wires

Standard & custom crimping

Precision connector assembly

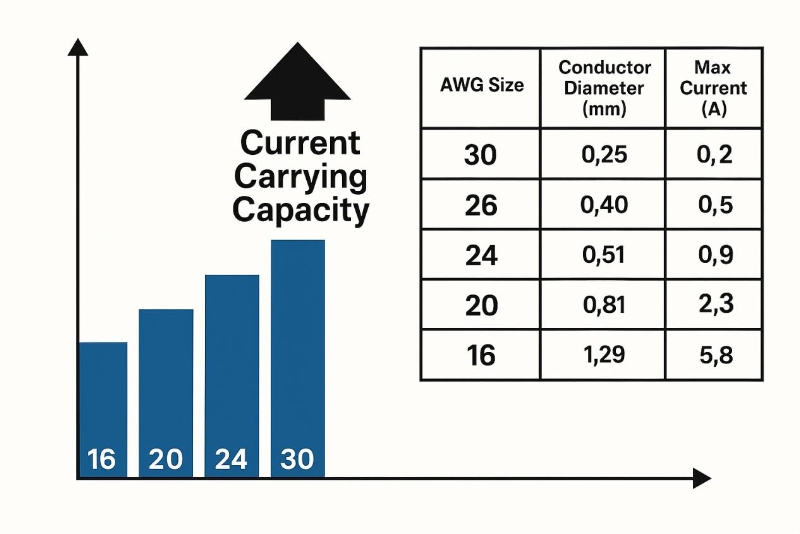

Current values in the image are rounded approximations (1 decimal), while original table data uses higher precision (1-2 decimals); always refer to certification standards or manufacturer specs for actual selection.



Shenzhen Era WingShing Electronics Co., Ltd. was established in 1997. It is a private enterprise integrating scientific research, production and sales. It focuses on the research and development, production and sales of UL electronic wires, terminal wires, automotive wiring harnesses, medical wiring harnesses, USB cables and other electronic wire products, and maintains long-term strategic partnerships with JST, MOLEX, TE, Sumitomo and other electronic cable brand manufacturers. With stable production capacity and skilled workers, it has a large sales team and a strong production team, as well as high-quality and high-yield fully automatic production equipment.
