A1255 1.25mm Pitch Wire-to-board Connecting Wire Crimp Terminal

A1255 1.25mm Pitch Wire-to-board Connecting Wire Crimp Terminal

These 1.25mm pitch wire-to-board connecting wire are made using eco-friendly materials that comply with ROHS and UL safety standards. We also offer custom specifications to meet your application needs.

  • Item No :

    A1255
  • Pitch :

    1.25mm
  • Current Rating :

    1A AC,DC(Per Pin)
  • Voltage Rating :

    200V AC,DC(Per Pin)
  • Temperature Range :

    -25°C~+85°C
  • Contact Resistance :

    40mΩ Max.
  • Insulation Resistance :

    100MΩ Min.
  • Withstanding Voltage :

    500V AC/minute
  • Wire Range :

    AWG28-32
  • Product Details

A1255 1.25mm Pitch Wire-to-board Connecting Wire Crimp Terminal



Product Overview
Wire Gauge: 28-32 AWG standard; other sizes available upon request
Connector: Default model A1255H; alternative models available based on customer drawings or specifications
Length: Fully customized according to customer needs to better fit equipment layouts or specific design requirements
Color: Customizable according to project preferences or brand needs

Materials and Quality
Certification Standards: All raw materials meet ROHS and UL safety/environmental standards
Manufacturing Process: Fully automated wire stripping and terminal crimping by machines, with manual insulation covering to ensure solid assembly and performance
Performance: These cables maintain stable conductivity even in harsh or continuous use environments.

Packaging and Delivery
Default Packaging: Tied with cable ties and wrapped in bubble wrap for optimal shipping protection
Custom Packaging: Available upon customer request, including labels, inner bags, and cartons
Shipping Methods: Flexible shipping options via air freight, sea freight, or international courier
Delivery Time: We align with customer schedules – advance notice required for delivery timelines (actual delivery time may vary).

Typical Applications
These cables are specially made for cameras and other products that require compact spaces, and are also ideal for:


Consumer Electronics
These cables are suitable for various electronic devices such as smartphones, tablets, laptops, smartwatches, and headphones, providing reliable internal connections for efficient data transfer and power supply.
For example, they can be used to connect the displays, sensors, and other compact components in smartphones and other portable devices.

Automation Equipment
These connecting cables are ideal for industrial automation control systems, including PLCs, sensors, and actuators. They maintain stable conductivity and durability even in high-frequency, high-load environments, ensuring reliable long-term operation of equipment.

They are widely used in robotic arms, automated testing equipment, and industrial automation monitoring devices.

Energy Systems
Used in energy storage systems, UPS (Uninterruptible Power Supply) systems, and other power management equipment, these cables ensure the reliability and efficiency of power supply. They can be applied in battery packs, inverters, chargers, and Battery Management Systems (BMS), assisting in energy management and transmission.

These cables are crucial in power conversion and monitoring processes, especially in high-load work environments.

Medical Equipment

Suitable for various medical devices, including portable diagnostic instruments, monitors, sensors, and imaging devices. These cables ensure stability and high efficiency in device operation and data collection.
They also play a key role in emergency medical devices and wearable health monitoring systems.

Automotive Systems
Widely used in automotive electronics, including in-vehicle navigation systems, entertainment systems, sensors, and control units. They connect various electronic components inside the vehicle, such as wireless charging modules, lighting controls, and cameras, enhancing vehicle intelligence.

Additionally, they are used in electric vehicles (EVs) and hybrid vehicles (HEVs) in battery management systems and electronic control systems.

Aerospace
In aerospace equipment, particularly in high-performance aircraft, satellites, drones, and spacecraft, these cables provide stable power supply and data transmission, ensuring reliability and durability in extreme environments.

Especially in space-constrained equipment, these high-performance cables improve design efficiency and device stability.

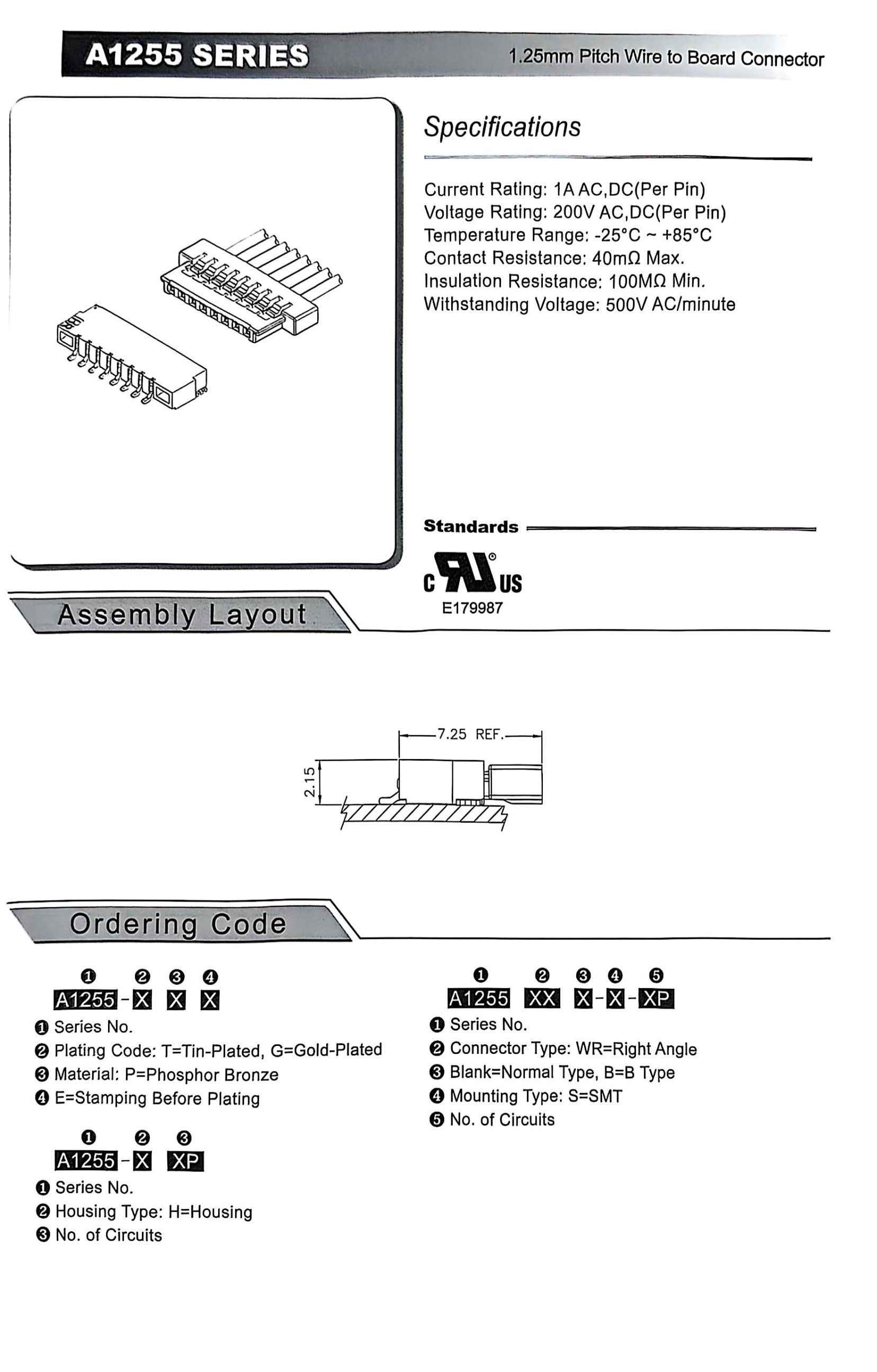

Specifications

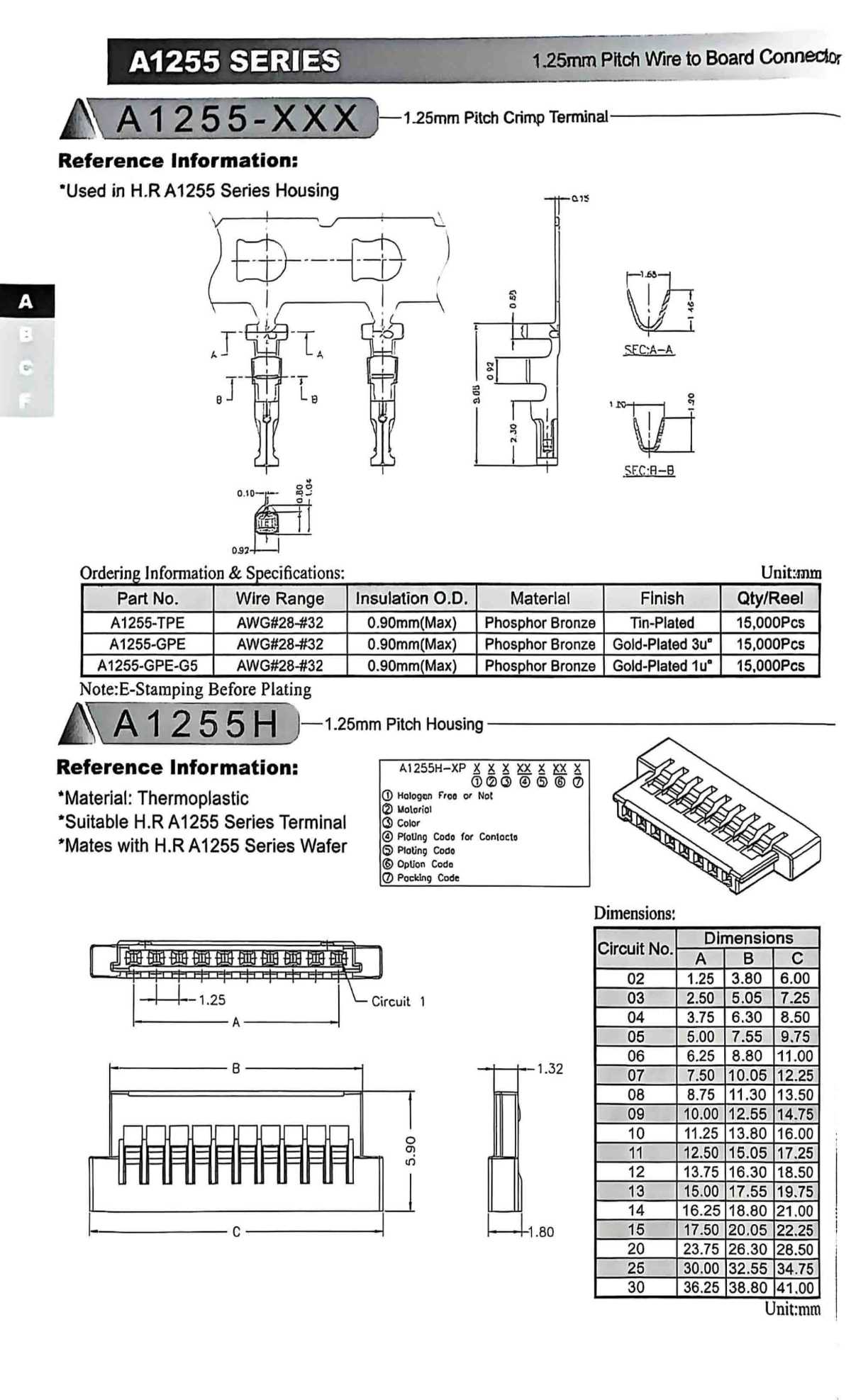

Ordering Information & Specifcations:
Part No. Wire Range Insulation O.D. Materlal Finish Qty/Reel
A1255-TPE AWVG#28-#32 0.90mm(Max) Phosphor Bronze Tin-Plated 15,000Pcs
A1255-GPE AWVG#28-#32 0.90mm(Max) Phosphor Bronze Gold-Plated 3u" 15,000Pcs
A1255-GPE-G5 AWVG#28-#32 0.90mm(Max) Phosphor Bronze Gold-Plated 1u" 15,000Pcs



A1255H 1.25mm Pitch Housing Reference Information:
*Material: Thermoplastic
*Suitable H.R A1255 Series Terminal
*Mates with H.R A1255 Series Wafer



Dimensions:
Circuit No. Dimensions
A B C
02 1.25 3.80  6.00
03 2.50  5.05 7.25
04 3.75 6.30  8.50
05 5.00  7.55 9.75
06 6.25 8.80  11.00
07 7.50  10.05 12.25
08 8.75 11.30  13.50
09 10.00  12.55 14.75
10 11.25 13.80  16.00
11 12.50  15.05 17.25
12 13.75 16.30  18.50
13 15.00  17.55 19.75
14 16.25 18.80  21.00
15 17.50  20.05  22.25
20 23.75 26.30  28.50
25 30.00  32.55 34.75
30 36.25 38.80  41.00
