2.00mm Pitch Wire-to-board Connector Wire Used in H.R A2100 Series Housing

2.00mm Pitch Wire-to-board Connector Wire Used in H.R A2100 Series Housing

2.00mm Pitch Wire-to-board Connector Wire Used in H.R A2100 Series Housing

These 2.00mm pitch wire-to-board connector wire are manufactured using eco-friendly materials compliant with ROHS and UL safety standards. These terminals are specifically designed to be used within the H.R A2100 series housing. The A2100-T terminal is made of phosphor bronze and is available with tin-plating.
Custom specifications are available to fulfill your application requirements.

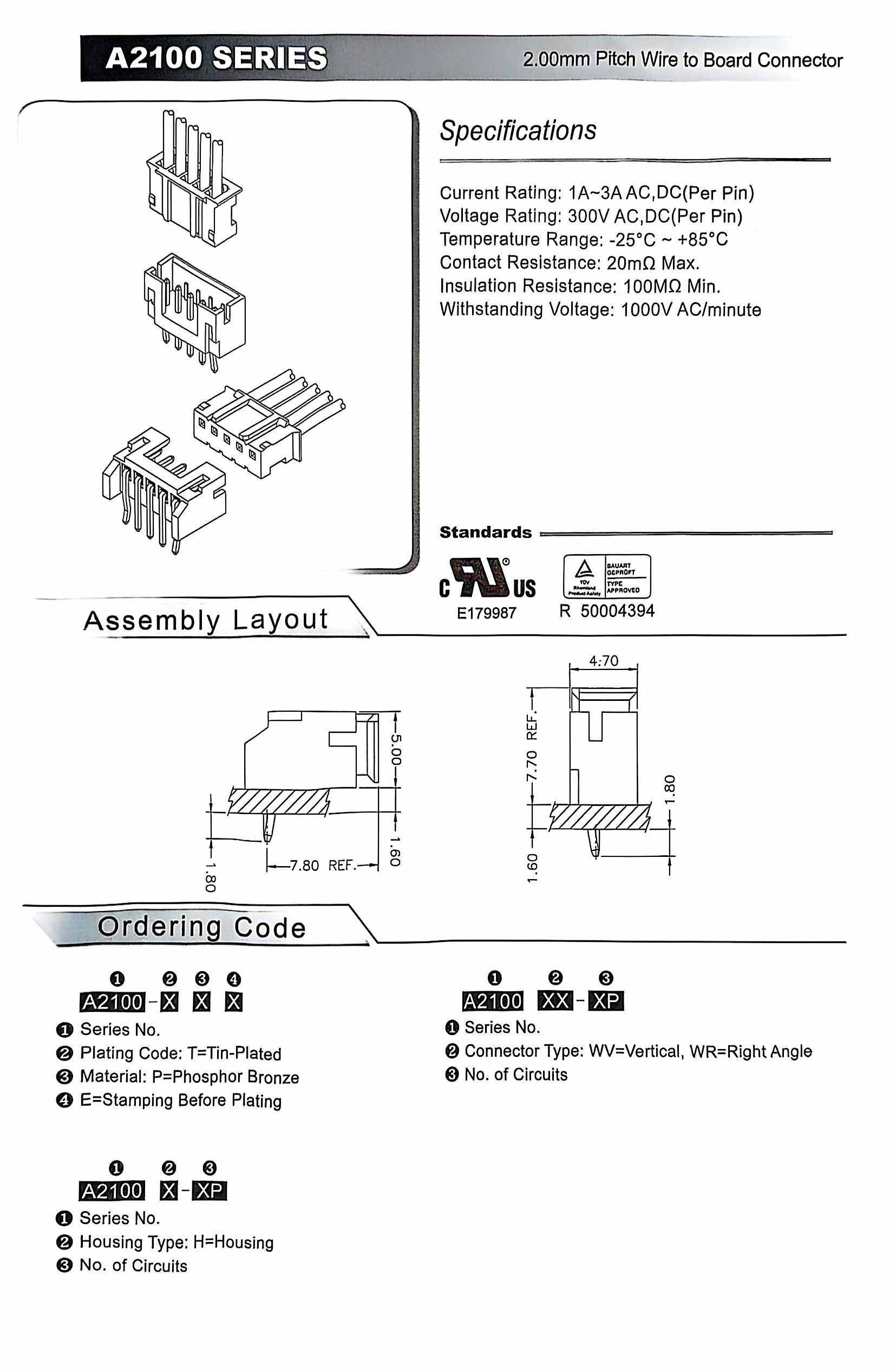

  • Item No :

    A2001

  • Pitch :

    2.00mm

  • Current Rating :

    1A~3AC,DC(Per Pin)

  • Voltage Rating :

    300V AC,DC(Per Pin)

  • Temperature Range :

    -25°C~+85°C

  • Contact Resistance :

    20mΩ Max.

  • Insulation Resistance :

    100MΩ Min.

  • Withstanding Voltage :

    1000V AC/minute

  • Wire Range :

    AWG24-28
Inquiry Now
  • Product Details

2.00mm Pitch Wire-to-board Connector Wire Used in H.R A2100 Series Housing

Product Overview
Wire Gauge:24-28AWG standard; other sizes available upon request
Connector:Default model A2100H; alternative models provided per customer drawings or specifications
Length:Tailored to customer specifications for optimal device integration
Color:Customization based on project branding requirements

Materials & Quality
Certification Standards: All raw materials meet ROHS and UL safety/environmental requirements
Manufacturing Process: Machine-automated wire stripping and terminal crimping, with manual connector housing installation for reliable power transmission.
Performance: Ensures consistent current delivery under extended operational loads.

Packaging & Delivery
Standard Packaging:Bundled with cable ties and protected with bubble wrap
Custom Packaging:Available upon request (labels, inner bags, cartons)
Shipping Methods:Air freight, sea freight, or international express
Lead Time:Coordinated with customer schedules------delivery timeline must be specified in advance. (Actual delivery period applies)



Typical Applications
Engineered for LED lighting systems, critical for:

  • #
    Commercial Lighting Systems
    - Smart office building LED circuits
    - Retail display accent lighting wiring
    - Hotel ambiance lighting controls
  • #
    Outdoor Lighting Projects
    - Bridge outline illumination power
    - Solar-powered park pathway lighting
    - Traffic signal backup power links
  • #
    Professional Lighting Equipment
    - Studio adjustable LED array systems
    - Surgical shadowless lamp internals
    - Plant factory growth light clusters
  • #
    Special Vehicle Lighting
    - Construction vehicle warning light circuits
    - Emergency response vehicle lighting
    - Refrigerated transport interior LED lighting

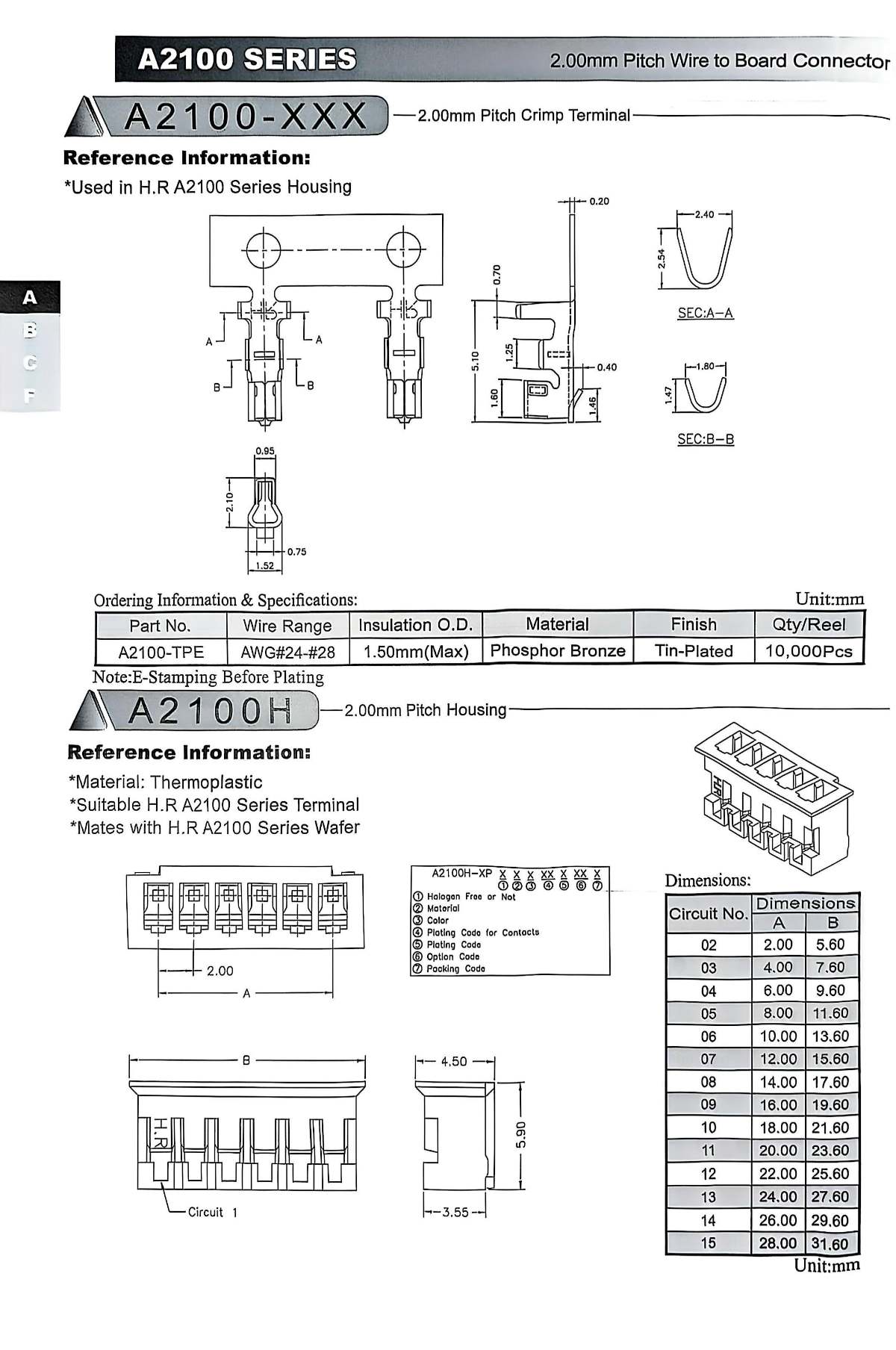

Specifications

Ordering Information & Specifications:
Part No. Wire Range Insulation O.D. Material Finish Qty/Reel
A2100-TPE AWG#24-#28 1.50mm(Max) Phosphor Bronze Tin-Plated 10,000Pcs





A2001 2.00mm Pitch Housing Reference Information:
*Material: Thermoplastic
*Suitable H.R A2001 Series Terminal
*Mates with H.R A2001 Series Wafer



Dimensions:
Circuit No. Dimensions
A B
02 2.00  5.60
03 4.00  7.60
04 6.00  9.60
05 8.00  11.60
06 10.00  13.60
07 12.00  15.60
08 14.00  17.60
09 16.00  19.60
10 18.00  21.60
11 20.00  23.60
12 22.00  25.60
13 24.00  27.60
14 26.00  29.60
15 28.00  31.60









Why choose us？

  • # Over 25 Years of Manufacturing Experience
    Founded in 1997, we have been dedicated to wire harness production for more than two decades, serving clients across multiple industries with stable supply and proven technical capability.
  • # Certified Quality Management Systems
    Our operations are ISO 9001 and IATF 16949 certified, and we obtained UL certification in 2012. These international standards reflect our long-standing commitment to product quality and safety.
  • # Strong Track Record of Continuous Improvement
    From our initial ISO 9001:2008 certification to the successful renewal of ISO 9001:2015 and IATF 16949 in 2024, we continue to upgrade our processes to meet evolving market and customer requirements.




Frequently Asked Questions (FAQ)

Q1:Can wire gauge, connector type, or cable length be customized?
A1:Yes. Full customization is offered based on application needs. Wire gauge, connector model, length, and color can all be tailored.

Q2:What certifications apply to the products and factory?
A2:Factory: ISO 9001:2015 & IATF 16949 Automotive Quality Management.

Q3:Which industries do you primarily serve?
A3:We provide wiring solutions for consumer electronics, energy storage systems, telecom cabinets, UPS backup systems, vehicle platforms, and industrial control panels.

Q4:Do you have OEM/ODM project experience?
A4: Yes. With over 25 years of manufacturing expertise, we specialize in OEM/ODM projects including design, prototyping, and mass production from specifications.

Q5:What is the production lead time?
A5: Varies by order volume and customization complexity. Confirmed during order processing to meet project timelines.

Q6:How are cables packaged and shipped?
A6: Standard: Cable ties + bubble wrap
Custom: Custom packaging/labeling
Shipping: Express / Sea freight / Air freight

Q7: What is the Minimum Order Quantity (MOQ)?
A7: Flexible MOQ negotiable based on product specs and order quantity.
