A2003(SAN.JC20) 2.00mm Pitch Pressure Welding Bar Connector Wire Harness

A2003(SAN.JC20) 2.00mm Pitch Pressure Welding Bar Connector Wire Harness

The A2003(SAN.JC20) series 2.00mm pitch pressure welding bar connector wire harness is available in 2 to 15 circuits, offering stable electrical performance and high-reliability connections. This series supports a rated voltage of 250V DC/AC and a rated current of 1.0A, compatible with AWG#30–#24 wire sizes, and is ideal for use in major appliances, kitchen appliances, and precision electronic equipment. These interconnects utilize eco-compliant materials meeting ROHS and UL safety standards.

  • Item No :

    A2003(SAN.JC20)
  • Current Rating :

    1.0A
  • Voltage Rating :

    250V DC/AC (rms)
  • Contact Resistance :

    ≤0.02 Ω
  • Insulation Resistance :

    ≥1000MΩ
  • Poles :

    2~15
  • Applicable wire :

    AWG#30-#24
  • Withstand voltage :

    800V AC(rms)
  • Working Temperature :

    -25°C~+85°C
  • Product Details

A2003(SAN.JC20) 2.00mm Pitch Pressure Welding Bar Connector Wire Harness



The A2003(SAN.JC20) 2.00mm Pitch Pressure Welding Bar Connector Wire Harness is designed for multi-circuit signal and power transmission, available in 2–15 pole configurations to meet diverse wiring requirements. Its pressure-welding design ensures secure mechanical fastening and excellent electrical contact performance. With an operating temperature range of -25°C to +85°C, the product is suitable for a wide variety of application environments. Featuring insulation resistance ≥1000MΩ and contact resistance ≤0.02Ω, it effectively minimizes signal loss and energy dissipation.

Whether it is signal transmission or low-power power supply, A2003 (SAN.JC20) can provide a stable, durable and secure connection solution. It can also support customized cable lengths and termination methods to meet the diverse needs of OEM/ODM projects



Product Overview
Wire Gauge: 24-28AWG standard; alternative dimensions offered per customer request
Connector: Default model JC20; substitute models provided per client schematics
Length: Precision-engineered for appliance internal layouts
Color: Customization based on project requirements or brand identity

Materials & Quality
Certifications: All raw materials adhere to ROHS and UL safety/environmental benchmarks
Production Process: Automated wire stripping and terminal crimping, with manual housing assembly ensuring vibration-resistant connections.
Performance: Maintains signal integrity in high-temperature confined spaces.

Packaging & Delivery
Standard Packaging: Bundled with cable ties and cushioned with anti-static bubble wrap
Custom Packaging: Available with labeling, moisture barrier bags, and reinforced cartons
Shipping Options: Air freight, sea freight, or international express services
Lead Time: Synchronized with production schedules------delivery timeline must be confirmed in advance. (Actual delivery period applies)



Typical Applications
Optimized for internal wiring solutions, essential for:

Major Appliance Systems
- Refrigerator control board-sensor links
- Washer main PCB to control panel wiring
- Microwave high-voltage circuit interfaces

Kitchen Appliance Circuits
- Dishwasher pump control loops
- Induction cooktop coil power feeds
- Oven temperature sensor lines

A/V Equipment Interconnects
- TV mainboard-LED backlight wiring
- Audio amplifier module cabling
- Game console high-speed signaling

Office Equipment Integration
- Printer head driver circuits
- Projector optical engine controls
- Scanner CCD module power supply

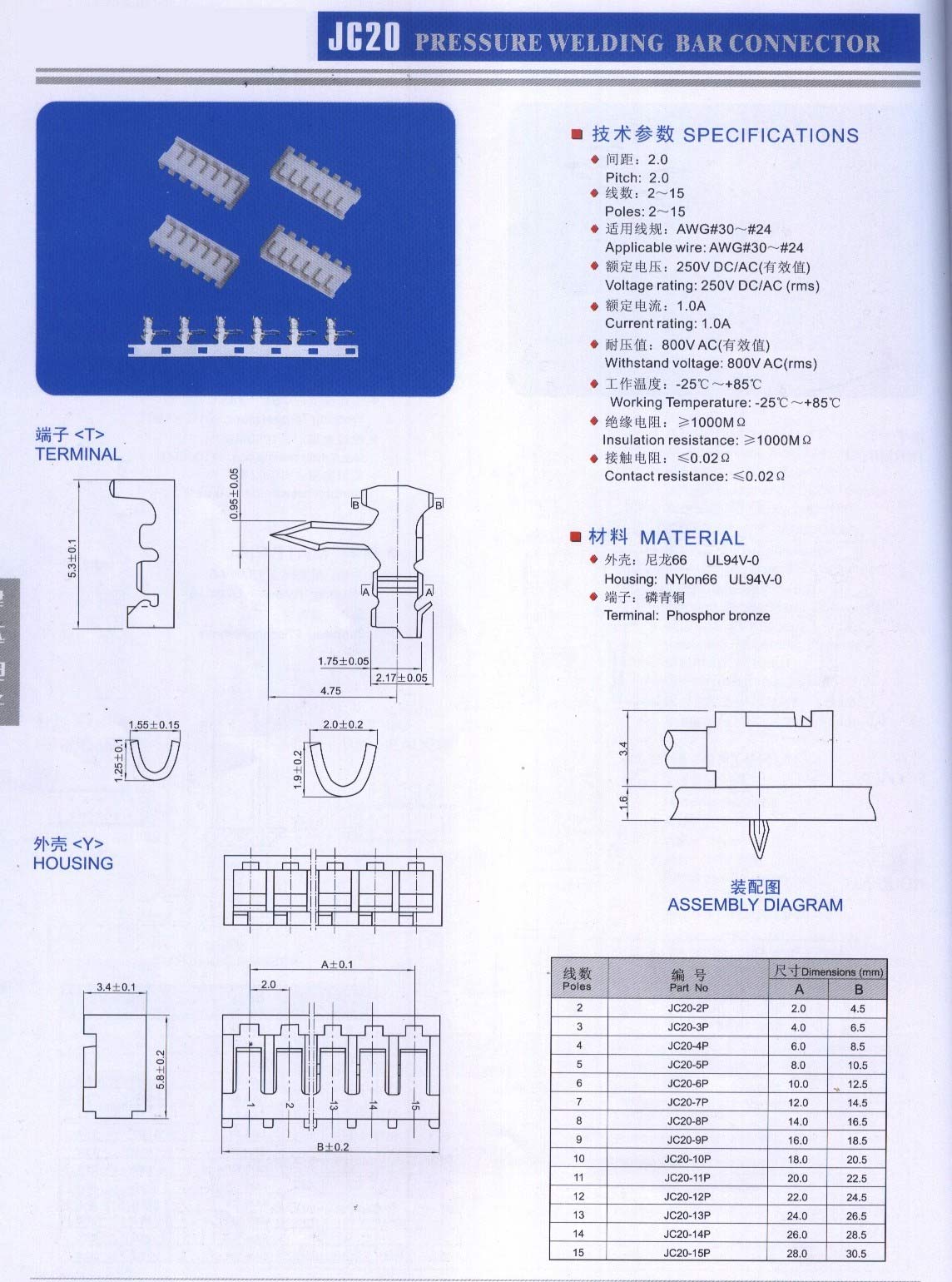

Specifications

Pressure Welding Bar Connector Wire Harness Specifications

Poles Part No Dimensions (mm)
A B
2 JC20-2P 2.0  4.5
3 JC20-3P 4.0  6.5
4 JC20-4P 6.0  8.5
5 JC20-5P 8.0  10.5
6 JC20-6P 10.0  12.5
7 JC20-7P 12.0  14.5
8 JC20-8P 14.0  16.5
9 JC20-9P 16.0  18.5
10 JC20-10P 18.0  20.5
11 JC20-11P 20.0  22.5
12 JC20-12P 22.0  24.5
13 JC20-13P 24.0  26.5
14 JC20-14P 26.0  28.5
15 JC20-15P 28.0  30.5



Why choose us?

  • # Over 25 Years of Manufacturing Experience
    Founded in 1997, we have been dedicated to wire harness production for more than two decades, serving clients across multiple industries with stable supply and proven technical capability.
  • # Certified Quality Management Systems
    Our operations are ISO 9001 and IATF 16949 certified, and we obtained UL certification in 2012. These international standards reflect our long-standing commitment to product quality and safety.
  • # Strong Track Record of Continuous Improvement
    From our initial ISO 9001:2008 certification to the successful renewal of ISO 9001:2015 and IATF 16949 in 2024, we continue to upgrade our processes to meet evolving market and customer requirements.


Frequently Asked Questions (FAQ)
Q1: Can wire gauge, connector type, or cable length be customized?
A1: Absolutely. Full customization is offered including gauge, connector variant, length, and color.

Q2: What certifications apply?
A2: Facility: ISO 9001:2015 & IATF 16949 Automotive Quality Management.
Product: UL certified, materials conform to ROHS/UL standards.

Q3: Which industries do you serve?
A3: We provide wiring solutions for consumer electronics, energy storage, telecom infrastructure, UPS systems, automotive, and industrial automation.

Q4: Do you have OEM/ODM experience?
A4: Affirmative. 25+ years specializing in OEM/ODM projects from design to mass production.

Q5: What is the production lead time?
A5: Varies by order volume/complexity. Confirmed during order processing.

Q6: How are cables packaged/shipped?
A6: Standard: Cable ties + bubble wrap
Custom: Tailored packaging/labeling
Shipping: Express / Sea freight / Air cargo

Q7: What is the Minimum Order Quantity?
A7: Flexible MOQ negotiable based on specifications and order scale.

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

JST XSR-36S Neckband Headphone Cable
JST XSR-36S Neckband Headphone Cable
The JST XSR-36S Neckband Headphone Cable is manufactured with environmentally friendly materials that meet ROHS standards and have passed UL certification, combining environmental friendliness with reliable performance. It supports customization of the 36AWG wire type, and users can replace the default JST XSR - 36S plastic housing with those from other brands. The minimum order quantity is flexible and negotiable. This product is applicable to fields such as headphones and consumer electronics, capable of stably transmitting current and signals to meet diverse connection requirements.
JST 02ASR-36S Earphone Terminal Cable
JST 02ASR-36S Earphone Terminal Cable
Do you need a pair of earphone connecting wires? The JST 02ASR-36S connecting wire, also a earphone terminal wire, is your ideal choice. It is made of materials that meet the ROHS standard and have passed the UL certification. It supports customization of the wire type, plastic housing, and size. The minimum order quantity can be negotiated to provide you with a personalized solution.
JST 02SSR - 32H Speaker Wire
JST 02SSR - 32H Speaker Wire
The JST 02SSR - 32H Speaker Wire is made of environmentally friendly materials that meet ROHS and UL standards. It supports customization of 32AWG wire types and plastic housings, and the minimum order quantity is negotiable. It is suitable for devices such as tablet computers and displays, and can stably transmit current and signals.
JST 02SUR-32S Connecting Cable
JST 02SUR-32S Connecting Cable for Smartwatches
JST 02SUR - 32S Connecting Cable for Smartwatches is a high - quality connector. Its materials meet the ROHS and UL standards, ensuring environmental friendliness and safety. It supports customization of wire types and dimensions, and allows for the replacement of the plastic housing with those from other brands. The minimum order quantity is flexible. It is applicable to fields such as smartwatches, smart bracelets, etc., and can stably transmit signals and power.
A1001 Series 5pin Wire Jumper Screen Connector Cable Assembly
A1001 Series 5pin Wire Jumper Screen Connector Cable Assembly
The A1001 Series Screen Connecting Cables are made of environmentally friendly materials that meet ROHS and UL standards. They support customization of wire types within the 28 - 32AWG range and plastic housings, and the minimum order quantity is negotiable. They are suitable for devices such as displays and can stably transmit current signals.
A1006 Series Screen Cables
A1006 Series Screen Cables
The A1006 Series Screen Cables are made of environmentally friendly materials that meet ROHS and UL standards. They support customization of wire types within the 28 - 36AWG range and plastic housings, and the minimum order quantity is negotiable. They are suitable for devices such as displays and can stably transmit current and signals.
A1252 Wire-to-board Connecting Cable
A1252 Wire-to-board Connecting Cable
The A1252 wire-to-board connecting cable is made of environmentally friendly materials that meet ROHS and UL standards, ensuring safety and reliability. It supports customization of wire types within the range of 28 - 32AWG, and the plastic housing can be replaced with those from other brands. The minimum order quantity is negotiable. It is suitable for devices such as displays and cameras, and can stably transmit current signals.
A1251 TV Connecting Cable
A1251 TV Connecting Cable
The A1251 TV connecting cable is made of environmentally friendly materials compliant with ROHS and UL standards, ensuring safety and reliability. It supports customization of wire types within the 26 - 30AWG range, and the plastic housing can be replaced with those from other brands. The minimum order quantity is negotiable according to specific projects. It is applicable to consumer products such as TV screens and electronic weighing scales, and can stably transmit signals and power.
