The A2002 (PH2.0) 2.00mm pitch wire to board connector cable is a high-performance customizable product. It is made of environmentally friendly materials that meet ROHS and UL standards, ensuring safety and reliability. It supports customization of wire types within the 24 - 30AWG range, and the plastic housing can be replaced with those.

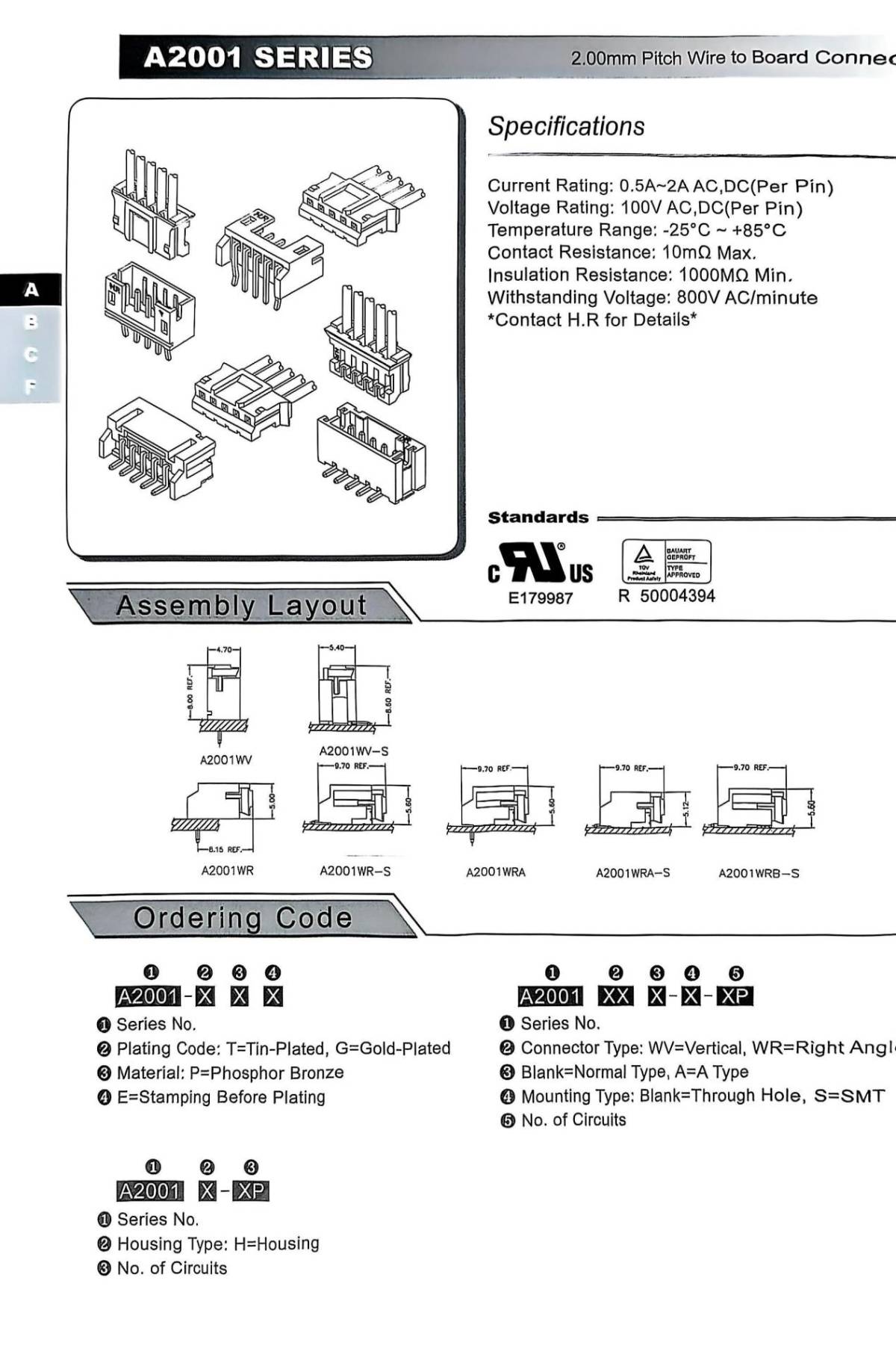

Item No :
A2002 (PH2.0)Pitch :
2.00mmCurrent Rating :
0.5A~2A AC,DC(Per Pin)Voltage Rating :
100V AC,DC(Per Pin)Temperature Range :
-25°C~+85°CContact Resistance :
10mΩ Max.Insulation Resistance :
1000MΩ Min.Withstanding Voltage :
800V AC/minuteWire Range :
AWG24-30A2002 (PH2.0) 2.00mm Pitch Wire to board connector Cable for Motor Systems

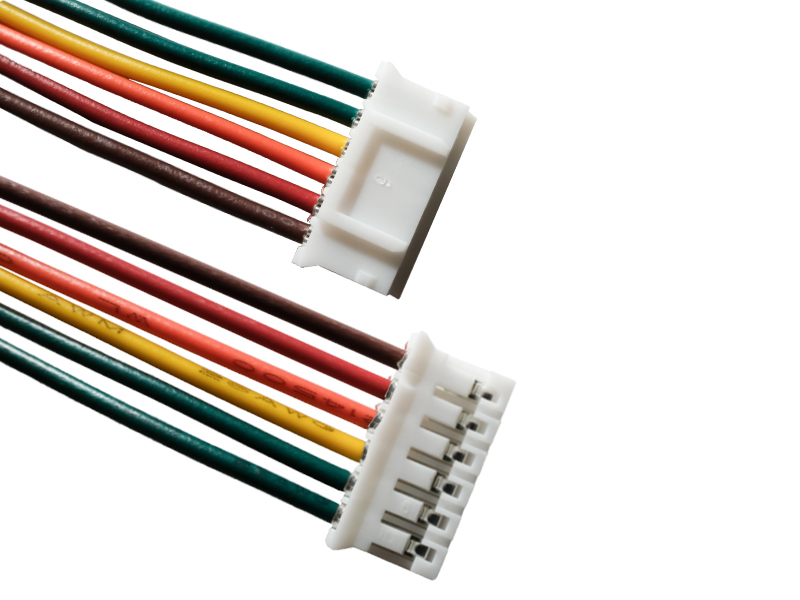

Product Overview
Wire Gauge: 24-30AWG standard; alternative dimensions offered per customer request
Connector: Default model A2002H; substitute models provided according to client schematics
Length:Engineered to customer specifications for optimized motor integration
Color:Customization based on project requirements or brand identity
SPECIFICATIONS PH Housing
Pitch: 2.0
Poles:2-16
Applicable wire:AWG#30~#24
Voltage rating: 250v DC/AC (rms)
Current rating: 2.0A
Withstand voltage: 800VAC(rms)
Working Temperature:-25℃~+85℃
Insulation resistance: ≥1000MΩ
Contactresistance: ≤0.02Ω
Applicable PC board thickness: 0.8mm~1.6mm
Certifications: All raw materials adhere to ROHS and UL safety/environmental benchmarks
Materials & Quality

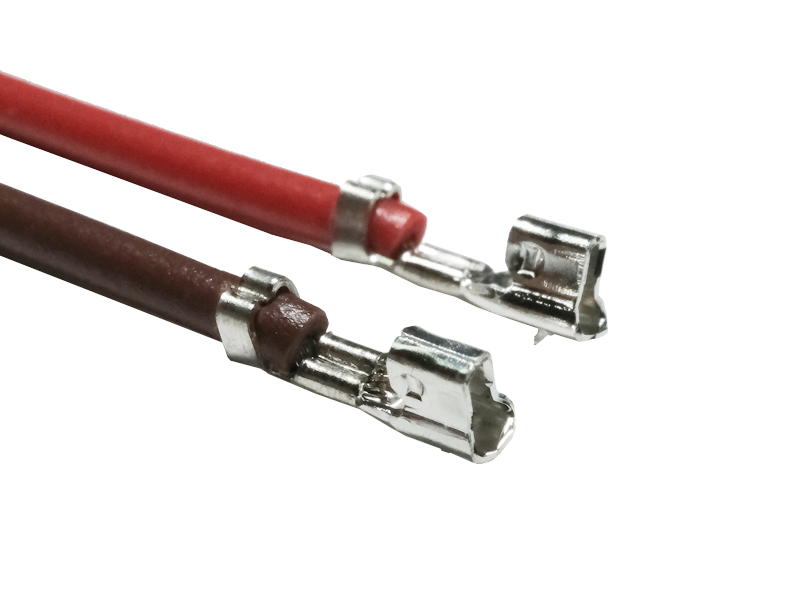

Production Process: Automated wire stripping and terminal crimping by machinery, with manual connector housing assembly for reliable motor connections.
Performance: Ensures consistent power transmission under high-vibration operating conditions.
Packaging & Delivery
Standard Packaging: Secured with cable ties and cushioned with bubble wrap
Custom Packaging: Options include labeling, inner pouches, and cartons
Shipping Options: Flexible arrangements via air cargo, ocean freight, or global courier
Lead Time: We align with customer timelines------advance schedule notice required. (Actual delivery period applies)
Typical Applications
Optimized for motor systems, critical for:
Industrial Automation
- Servo motor power transmission
- Robotic joint actuator connections
- Conveyor belt motor control
Home Appliances
- Washing machine drive motor wiring
- AC compressor control circuits
- Robotic vacuum wheel motors
Automotive Electronics
- Power window lift motors
- Cooling fan motor interfaces
- Electric seat adjustment systems
Smart Devices
- Drone propulsion motor cabling
- Smart lock actuator modules
- Power tool motor interfaces
Specifications

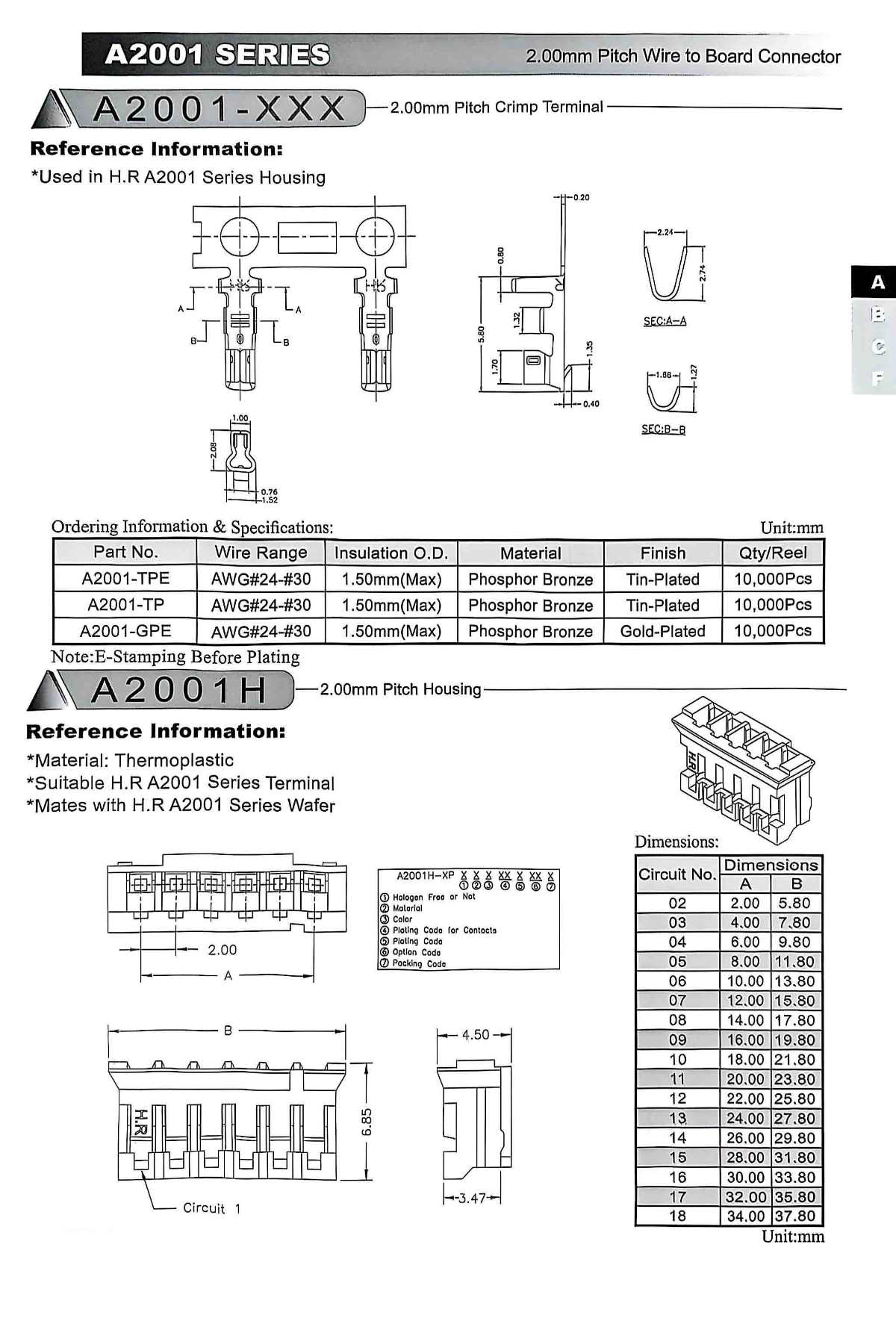

| Ordering Information & Specifications: | |||||
| Part No. | Wire Range | Insulation O.D. | Materlal | Finish | Qty/Reel |
| A2001-TPE | AWVG#24-#30 | 1.50mm(Max) | Phosphor Bronze | Tin-Plated | 10,000Pcs |
| A2001-TP | AWVG#24-#30 | 1.50mm(Max) | Phosphor Bronze | Tin-Plated | 10,000Pcs |
| A2001-GPE | AWVG#24-#30 | 1.50mm(Max) | Phosphor Bronze | Gold-Plated | 10,000Pcs |

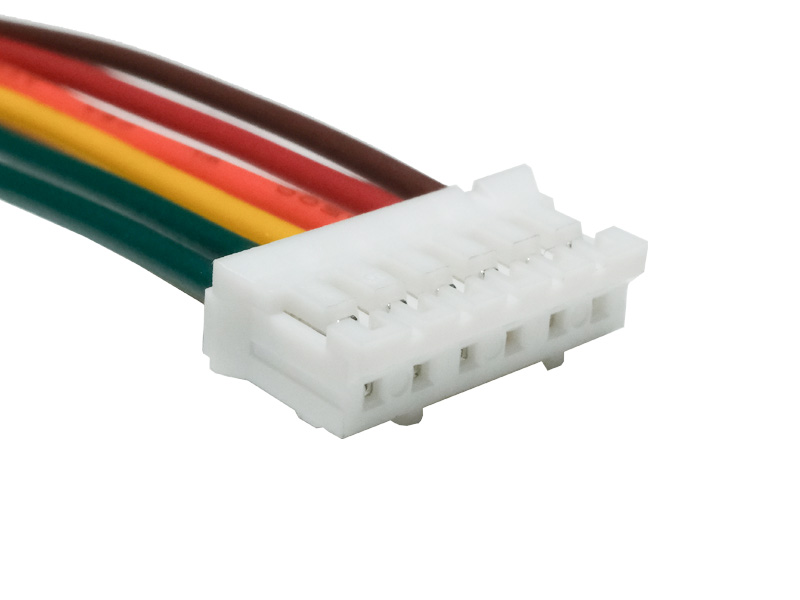

A2002 (PH2.0) 2.00mm Pitch Housing Reference Information:
*Material: Thermoplastic
*Suitable H.R A2001 Series Terminal
*Mates with H.R A2001 Series Wafer
| Dimensions: | ||
| Circuit No. | Dimensions | |
| A | B | |
| 02 | 2.00 | 5.80 |
| 03 | 4.00 | 7.80 |
| 04 | 6.00 | 9.80 |
| 05 | 8.00 | 11.80 |
| 06 | 10.00 | 13.80 |
| 07 | 12.00 | 15.80 |
| 08 | 14.00 | 17.80 |
| 09 | 16.00 | 19.80 |
| 10 | 18.00 | 21.80 |
| 11 | 20.00 | 23.80 |
| 12 | 22.00 | 25.80 |
| 13 | 24.00 | 27.80 |
| 14 | 26.00 | 29.80 |
| 15 | 28.00 | 31.80 |
| 16 | 30.00 | 33.80 |
| 17 | 32.00 | 35.80 |
| 18 | 34.00 | 37.80 |
Why choose us？
Over 25 Years of Manufacturing Experience
Certified Quality Management Systems
Strong Track Record of Continuous Improvement
Frequently Asked Questions (FAQ)
Q1: Can wire gauge, connector type, or cable length be customized?
A1: Absolutely. We provide end-to-end customization for motor applications. Conductor size, connector variant, length, and color can all be tailored.
Q2: What certifications apply to products/facilities?
A2: Facility: ISO 9001:2015 & IATF 16949 Automotive Quality Management.
Product: UL certified, materials conform to ROHS/UL standards.
Q3: Which market sectors do you primarily support?
A3: We deliver cabling solutions for consumer electronics, energy storage, telecom infrastructure, UPS systems, automotive platforms, and industrial automation.
Q4: Do you possess OEM/ODM project expertise?
A4: Affirmative. With 25+ years manufacturing experience, we specialize in OEM/ODM engagements supporting design, prototyping, and volume production from provided schematics.
Q5: What are typical production lead times?
A5: Duration varies by order volume/customization complexity. Lead time confirmation occurs during order finalization to meet project timelines.
Q6: How are cables packaged and shipped?
A6: Standard: Cable ties + protective bubble wrap
Custom: Tailored packaging/labeling
Shipping: Express courier / Ocean freight / Air cargo
Q7: What is the Minimum Order Quantity (MOQ)?
A7: Flexible MOQ negotiable based on product parameters and order scale.
